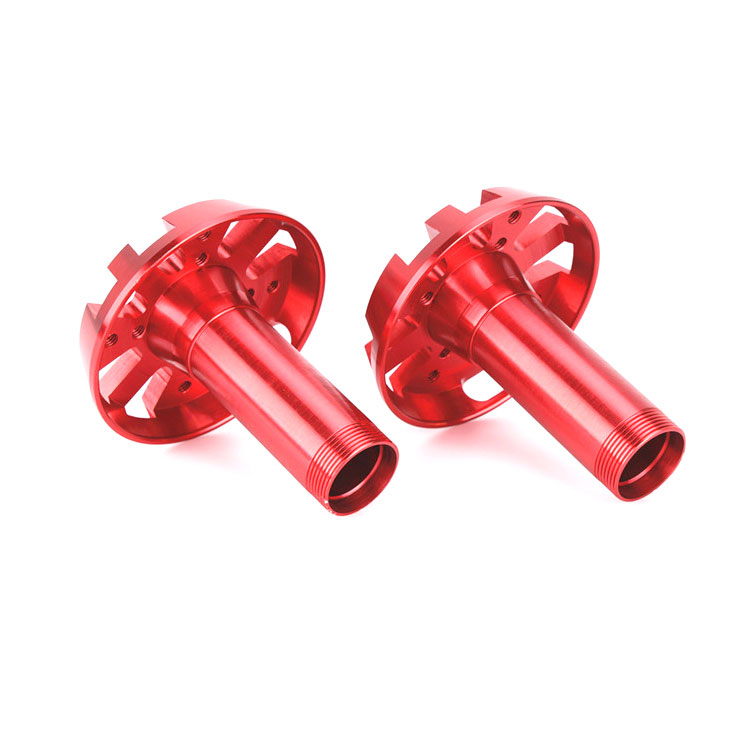

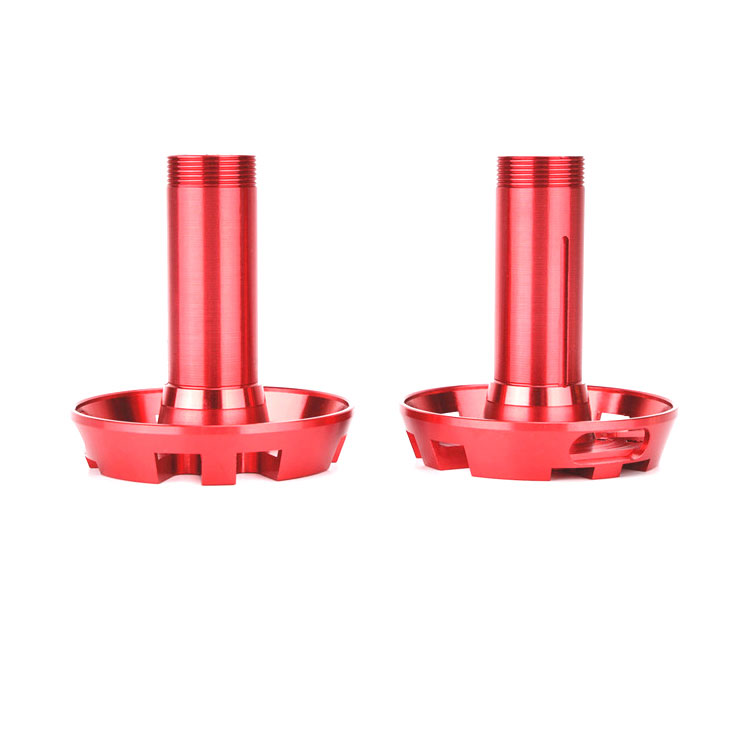

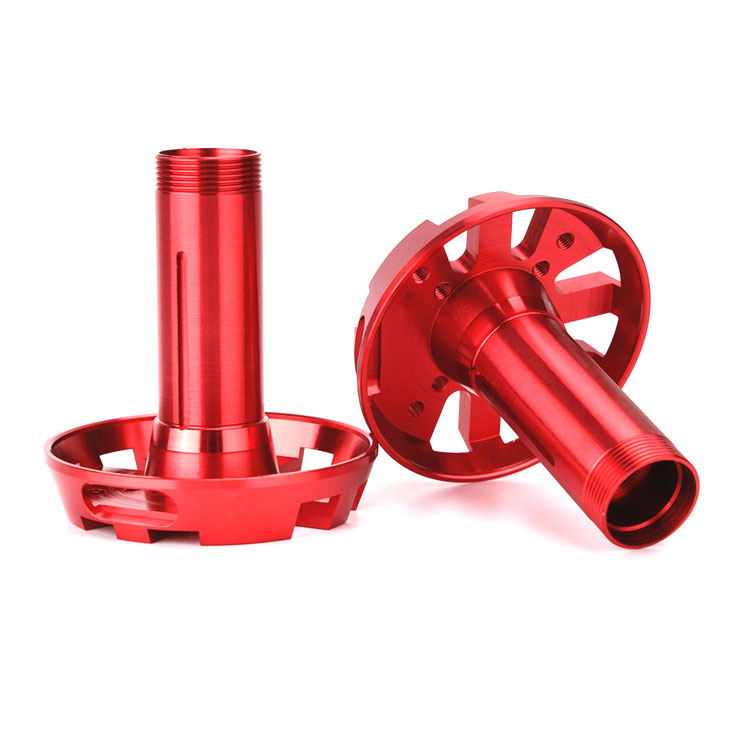

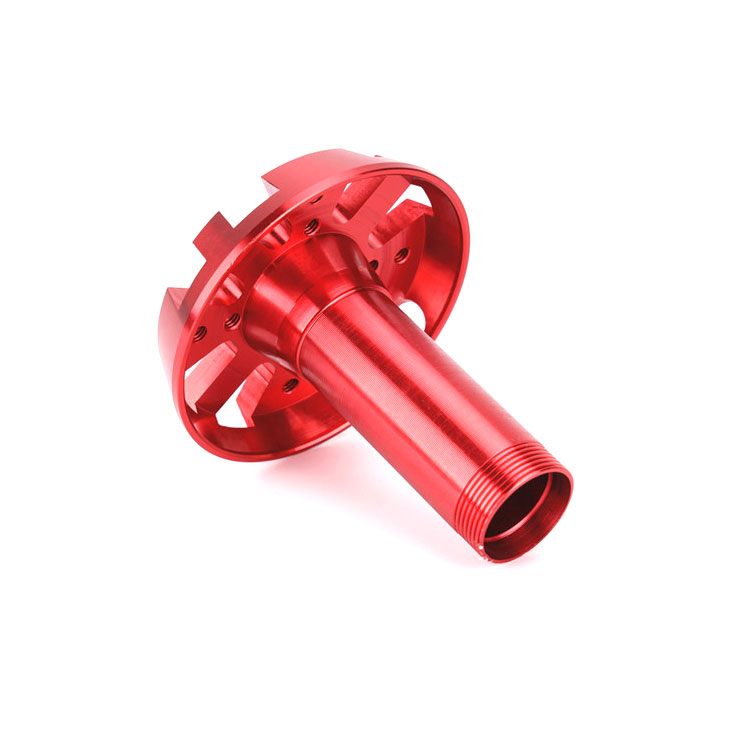

2021 New Design Red Anodizing Aluminum CNC Machining Service
  • 2021 New Design Red Anodizing Aluminum CNC Machining Service - 0 2021 New Design Red Anodizing Aluminum CNC Machining Service - 0
  • 2021 New Design Red Anodizing Aluminum CNC Machining Service - 1 2021 New Design Red Anodizing Aluminum CNC Machining Service - 1
  • 2021 New Design Red Anodizing Aluminum CNC Machining Service - 2 2021 New Design Red Anodizing Aluminum CNC Machining Service - 2
  • 2021 New Design Red Anodizing Aluminum CNC Machining Service - 3 2021 New Design Red Anodizing Aluminum CNC Machining Service - 3

2021 New Design Red Anodizing Aluminum CNC Machining Service

2021 New Design Red Anodizing Aluminum CNC Machining Service, Aluminum CNC parts are the all-time preferred auto components for auto spares and other industries, not just because they are very lightweight and attractive, but also because aluminum has many additional properties like its durability and its ease of installation. Under specific conditions, aluminum can be made very corrosion resistant. The fact that this metal can be cheaply obtained makes it the most economical option for the manufacturing industry. Aluminum parts anodizing is a process that makes aluminum the ultimate metal for a lot of interior and exterior building purposes and designs. Aluminum can also be molded into different shapes to form various aluminum parts.

Send Inquiry

Product Description

2021 New Design Red Anodizing Aluminum CNC Machining Service


Aluminum CNC parts are the all-time preferred auto components for auto spares and other industries, not just because they are very lightweight and attractive, but also because aluminum has many additional properties like its durability and its ease of installation. Under specific conditions, aluminum can be made very corrosion resistant. The fact that this metal can be cheaply obtained makes it the most economical option for the manufacturing industry. Aluminum parts anodizing is a process that makes aluminum the ultimate metal for a lot of interior and exterior building purposes and designs. Aluminum can also be molded into different shapes to form various aluminum parts.


1.Product Parameter for 2021 New Design Red Anodizing Aluminum CNC Machining Service


 Capacity

CNC Turning

φ0.5 - φ300 * 750 mm

+/-0.005 mm

CNC Machining

510 * 1020 * 500 mm(max)

+/-0.02 mm

Drawing Format

IGS,STP,X_T ,DXF,DWG , Pro/E, PDF

Test Equipment

measurement instrument, Projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge etc.



Material Available

Stainless Steel

SS201,SS301, SS303, SS304, SS316, SS416 17-4PH etc.

Steel

mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc.

Brass

HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.

Copper

C11000,C12000,C12000 C36000 etc.

Aluminum

AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc.

Iron

A36, 45#, 1213, 12L14, 1215 etc.

Plastic

ABS, PC, PE, POM, Delrin, Nylon, Teflon, PP,PEI, Peek etc.

 titanium

TC4 ,GR5 , Ti6AL4V



Surface finish

Aluminum parts

Stainless Steel parts

Steel

Plastic

Clear Anodized

Polishing

Zinc plating

Plating

Color Anodized

Passivating

Oxide black

Painting

Sandblast Anodized

Sandblasting

Nickel plating

polishing

Chemical Film

Laser engraving

Chrome plating

Laser engraving

Brushing



Carburized



Polishing



Hot treatment



Chroming



Powder Coated






2.Product Feature for 2021 New Design Red Anodizing Aluminum CNC Machining Service


Software

IGS,STP,X_T ,DXF,DWG , Pro/E, PDF

Material

aluminium

Surface

Red anodizing

Lead time

20 0pcs for 7days

Application

Auto parts

MOQ

1piece


3.Product Details for 2021 New Design Red Anodizing Aluminum CNC Machining Service


What is a barrier layer in aluminum parts anodizing?


When aluminum parts anodizing, a barrier layer is usually formed between the pure aluminum metal and the outer aluminum parts anodizing. A barrier layer is simply a film of highly pure aluminum oxide which is adjacent to the pure metal and the outer film that may be comprised of some impurities and incorporated anions. These films can be made for much thicker by hard anodizing.


How can color be added to aluminum parts anodizing?


Anodized aluminum parts can be colored to produce a cleaner and finer finish. There are 4 ways by which this can be done, these include: – Using a dye. The freshly anodized aluminum can be immersed in a colored liquid solution with a concentrated dye, the oxide coating will absorb the dye permanently. The intensity of the color depends on the concentration of the dye, the temperature of the solution, and the time of immersion.



– Electrolytic coloring. This involves immersing the anodized aluminum parts into a bath containing some inorganic metals. A current is then supplied to the solution and the metal salts are deposited at the base of the pores. The resulting color will depend on the metal used.

– Integral coloring. Integral coloring involves simultaneous anodizing and coloring in a single step process. Various metals like bronze, tin, and cobalt can be used together with a dye to bring out the final effects. This also results in a more abrasive resistant finish.

– Inference coloring. Inference coloring involves the modification of the pore structures using metal deposition which produces light colors ranging from blue, green, yellow, and red. These are as a result of optical interference.


4.FAQ


Q1:Where can I get product&price information?

A1:Send us inquirye-mail, we will contact you as we receive your mail.

Q2:How long can i get the sample?

A2:Depends on your specific items,within 3-7 days is required generally.

Q3:What's kinds of information you need for quote?

A3:Kindly please provide the product drawing in PDF,and will be better you can provde in STEP or IGS, send the parts materials, quantity, surface finishing and other requirements to us as well.

Q4: what's the payment terms?

A4: We accept 50% as payment deposit, when the goods is done, we take photoes for your check and you then pay the balance.

For small amount, we also accept Paypal, Paypal commission will be added to the order. For big amount, T/T is preferred

Q5.Are you a trading company or factory?

A6:We are direct factory with 10 experienced engineers and more than 30 employees as well approximate 3,000 square meters workshop area.

Q6. What shall we do if we do not have drawings?

Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.

Q7. Can we get some samples before mass production?

A8:Absolutely

Q8. What is your MOQ?

Our MOQ is 1pcs, it is also our one of advantage, even you have less budget, or want to reduce the risks before production, we both can accept the less MOQ.

Q9: Will you do 100% inspection or random inspection ?

We will do 100% inspection for samples, random inspection for mass production. When manufacturing, we will control the dimensions , do PQC in mass production.

Q10. How to do if the parts not match with drawings we received?

Contact us immediately, send the pictures and tell us the issues, we will check and repair or re-make the goods with free.

Q11. You will how to ship the parts to me?

When products finished, also passed by our QC, we will ship out the parts to you by DHL, Fedex , or by sea after communication



5.Deliver,Shipping forCNC Precision Titanium Parts Machining
