Medical Device Plastic Housing Vacuum Casting

In this era when user experience is highly valued, more and more manufacturers of mobile phones, laptops, and wearable devices are starting to make efforts in housing materials. In the mobile phone field alone, the material of mobile phone housing is also gradually moving from engineering plastic to metal.
But expensive metal will increase the budget if the design at the firstly stage, so the mobile phone manufacturer will use vauum casting to make the plastic housing to confirm the design before metal production.The following is about medical device plastic housing vacuum casting.

Send Inquiry

Product Description

Medical Device Plastic Housing Vacuum Casting


In this era when user experience is highly valued, more and more manufacturers of mobile phones, laptops, and wearable devices are starting to make efforts in housing materials. In the mobile phone field alone, the material of mobile phone housing is also gradually moving from engineering plastic to metal.

But expensive metal will increase the budget if the design at the firstly stage, so the mobile phone manufacturer will use vauum casting to make the plastic housing to confirm the design before metal production



1.Product Parameterfor Medical Device Plastic Housing Vacuum Casting


·Get parts fast in as little as 10 days

·Medical Grade Silicone options

·No volume too small 1pcs - 1 million+

·Fast quotes in under 48 hours


2.Product Feature for  Medical Device Plastic Housing Vacuum Casting


Technical Specifications

1 Standard lead time: Up to 10 copies within 15 working days
2 Standard accuracy : ±0.3% (with a lower limit on ± 0.3 mm on dimensions smaller than 100 mm)
3 Minimum wall thickness: To ensure that the mold is filled properly, a wall thickness of at least 0.75 mm is necessary. For best results, we recommend a wall thickness of at least 1.5 mm
4 Maximum part dimensions: The size of the mold is limited by the dimensions of the vacuum chamber (1900 x 900 x 750 mm) and by the volume of the product (maximum volume: 10 liters)
5 Typical quantities: Up to 25 copies per mold (depending on the mold’s complexity and the casting materials)
6 Surface structure: High-quality surface finish comparable to injection molding


3.Product Details for Medical Device Plastic Housing Vacuum Casting


The vacuum casting process is a bit intensive, but you can still complete it in a faced-paced manner. Below are the stages of vacuum casting:

*Producing the Master Model

The first step you need to do is to create the master model. The pattern could be an industrial part or done through 3D printing or CNC machining. The SLS technique produces the components through 3D printing. Make sure the master model used has the right dimensions so that the final casting parts will have the needed sizes.

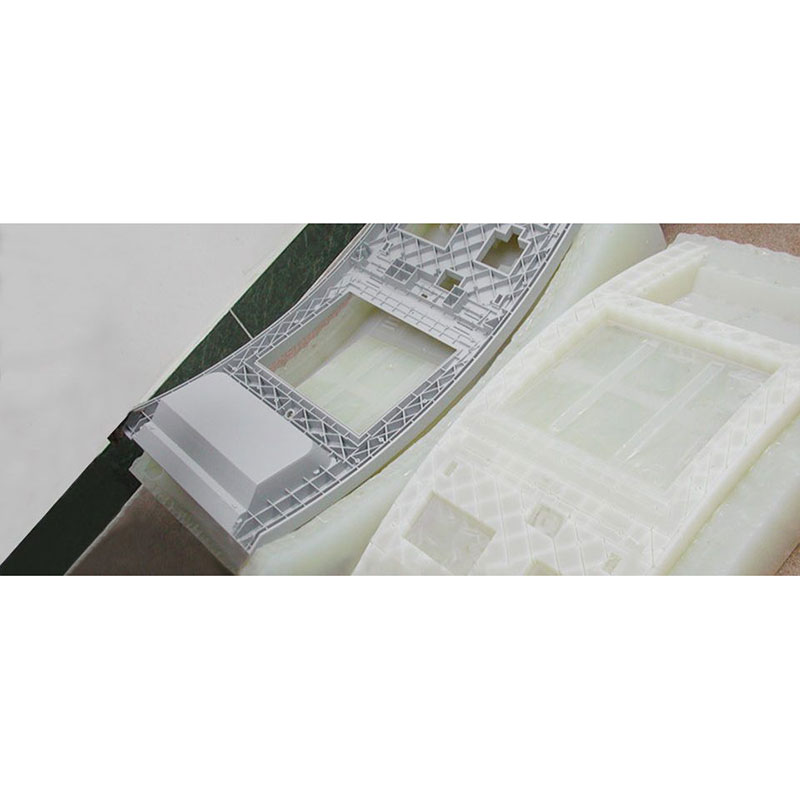

*Creating the Mold

To create a silicone mold, you need liquid silicone. As soon as you placed the master model inside the casting box, pour the liquid silicone on top of it and put it in the oven for curing. Open the cured liquid silicone and remove the created master mold from the mold. The empty will have the same dimensions and shape as that of the original master pattern. You can use the mold 15 to 20 times.

*Producing the Casting Copies

Adding the resins or polyurethane is the next step. It is a must that the mixture has the same properties as the actual part. Manufacturers keep a list of material data sheets that contains all the information about the properties and composition of the materials used for the process.

They use it as a reference to produce the resin that is similar to the properties of the main part. The mixture is added to the empty cavity to cast the product. It is then cured in a vacuum to ensure no bubbles are trapped.

*The Casting Equipment

The casting equipment has two chambers. The top chamber has a pair of dies with a mold cavity in between them and a movable plate on top. In the cavity, you will find the vacuum.

The other chamber is the bottom chamber with a crucible. It collects the resin once it passes through a gating system. The system serves as a pathway in controlling the inflow of the resin. It is likewise utilized in collecting the resin in the crucible. Once the machine removed the excess material, the final casting product is ready.


4.FAQ


Q1:Where can I get product&price information?

A1:Send us inquirye-mail, we will contact you as we receive your mail.

Q2:How long can i get the sample?

A2:Depends on your specific items,within 3-7 days is required generally.

Q3:What's kinds of information you need for quote?

A3:Kindly please provide the product drawing in PDF,and will be better you can provde in STEP or IGS, send the parts materials, quantity, surface finishing and other requirements to us as well.

Q4: what's the payment terms?

A4: We accept 50% as payment deposit, when the goods is done, we take photoes for your check and you then pay the balance.

For small amount, we also accept Paypal, Paypal commission will be added to the order. For big amount, T/T is preferred

Q5.Are you a trading company or factory?

A5:We are direct factory with 10 experienced engineers and more than 30 employees as well approximate 3,000 square meters workshop area.

Q6. What shall we do if we do not have drawings?

Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.

Q7. Can we get some samples before mass production?

A7.Absolutely

Q8. What is your MOQ?

Our MOQ is 1pcs, it is also our one of advantage, even you have less budget, or want to reduce the risks before production, we both can accept the less MOQ.

Q9: Will you do 100% inspection or random inspection ?

We will do 100% inspection for samples, random inspection for mass production. When manufacturing, we will control the dimensions , do PQC in mass production.

Q10. How to do if the parts not match with drawings we received?

Contact us immediately, send the pictures and tell us the issues, we will check and repair or re-make the goods with free.

Q11. You will how to ship the parts to me?

When products finished, also passed by our QC, we will ship out the parts to you by DHL, Fedex , or by sea after communication


5.Deliver,Shipping for Mobile Phone Housing Products Vacuum Casting
